Google Tag Manager Video Tracking Guide: Beyond Youtube

Updated: November 15, 2019 (several tracking codes were updated).

Finally, I’ve found some time to write a new blog post. Last week was pretty intense, but it’s over. This week’s topic is Google Tag Manager Video Tracking. I believe some of my readers have already tried to track Youtube or Vimeo players and send the data to Google Analytics. But what about other players, like JW Player, Vidyard, Wistia, etc.? And what about that no-name generic video player which is embedded on your (client’s) website?

In today’s blog post, I’ll show you how to track video players (not only Vimeo and Youtube). Turns out, all these tracking methods are based on the same principle (but use different tracking codes). So if you master one player, you’ll conquer them all.

Ready-made solutions

If you’re in a hurry, I’ve collected a bunch of GTM container templates (a.k.a. Recipes) which track various video players. Click any link below, follow the installation instructions, and you’ll be tracking video interactions in no time.

HTML5 Video player (supports various players)
JW Player
Vidyard
Vimeo
Youtube
Wistia

Built-in vs. Custom
#1. Youtube video player tracking
#2. Non-Youtube video tracking: an overview of the process
#3 Practical example: Vimeo video player
#4. Six Google Tag Manager Video Tracking Recipes. All Unified.
Final words

Built-in vs. Custom

One of the key Google Tag Manager concepts is Auto-Event Listeners. These JavaScript functions track certain interactions on your website and fire Data Layer events whenever something important happens. By default, Google Tag Manager offers a bunch of auto-event listeners, for example:

Pageview
Form submission
Link click
All element clicks
Timer
JavaScript Error
Element Visibility
Scroll Depth
History Change
Youtube (tracks embedded videos on your site)

Even though GTM offers a built-in functionality to track Youtube videos (because that’s Google’s property + the most popular video platform in the world), there are still other video player in the market.

#1. Youtube video player tracking

In this blog post, I’ll focus more on non-Youtube video players (e.g. Vimeo, generic HTML5, etc.). If you are interested in just a Youtube video player, you can either import the ready-made Youtube tracking recipe or implement everything manually by following this guide.

Also, if you find yourself stuck with the Youtube player tracking not working properly, read this guide. But now, let’s move to the zone of non-Youtube players.

#2. Non-Youtube video tracking: an overview of the process

#2.1 Identify the video player

Before you start with the actual tracking of video player interactions, first you need to identify what kind of video player is that. Video players clearly show their logo in the player box (e.g. Vimeo), others will probably be not that obvious.

If your case is the latter, do this. In your browser, open developer tools (in Chrome, that’s F12 (on Windows)) and then go to Elements tab. Then click this button…

… and then click on the player itself. Now try to browse a bit and locate some clues mentioning the player provider name. For example, in this case, the player that I’m inspecting is JW player.

If you can’t find the name, most likely it is an HTML5 video player.

#2.2 Check whether an existing tracking solution for that player exists

This one might look obvious but sometimes people forget to use Google Search. Enter the player’s name and “tracking with Google Tag Manager”. Let’s say that we are interested in tracking Vimeo video player.

#2.3 A Trigger for that Listener

Ok, let’s imagine that we’ve found the custom auto-event listener we need. What’s next? We could fire it on All pages, right? Well, in most cases, that’s not the best approach.

Why would you want to fire a listener on every page, although only 3 pages of your website contain a video? That’s just non-optimal. What options do you have here?

Option A: You can create a Pageview Trigger where URL contains A, B or C. This is not a very scalable solution because one day you might add 30 new videos, which means that you’ll also need to manually update the rule of a Pageview Trigger.
Option B: You can use a Custom Variable which returns “true” only when the page contains an actual embedded video player. That variable could be used as a rule in a Pageview trigger as follows: Fire a custom auto-event listener only when Video Player is present on the page (i.e. Custom JavaScript Variable’s value equals to true). I’ll demonstrate this in action after a few chapters of this blog post.

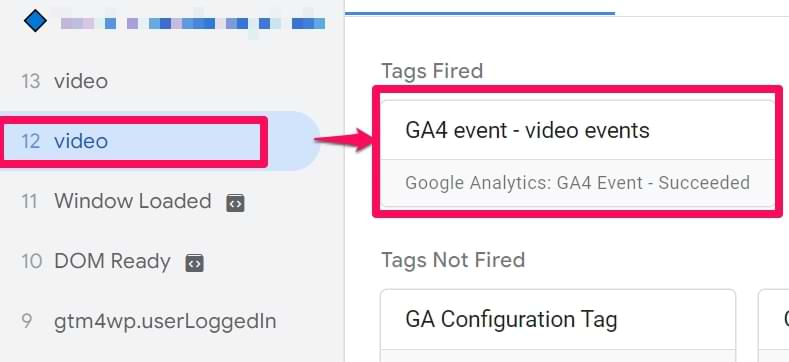

#2.4 Checkpoint – testing time

After you implement the custom auto-event listener, you’ll have to try it live. Once you’ll click the Play button, a Data Layer event will be fired with some data points (which will be transferred to Google Analytics).

By default, Google Tag Manager does not recognize variables (e.g. eventCategory) that are stored in the Data Layer, so you’ll need to create them in a GTM container. The same principle applies to the Data Layer event called video (you can see it in the screenshot above). It cannot be used as a trigger unless you create a Custom Event Trigger.

#2.5 Did anyone mention the Data Layer?

As I have previously mentioned, by default, GTM does not recognize various data points that are stored in the Data Layer. So if you wish to transfer some information to Google Analytics, you’ll first need to create Data Layer Variables in GTM. In the example below, I’ve created a Data Layer Variable which fetches the value of eventCategory. You should do the same with eventAction and eventLabel.

If you wish to better understand, how to pull the data from the Data Layer, read this blog post.

Coming up next, a trigger. We need it to activate ONLY when a video player interaction occurs (Play, Pause, etc.). Remember that “video” event I have previously mentioned? That’s a perfect trigger.

Create a Custom Event Trigger with the following settings:

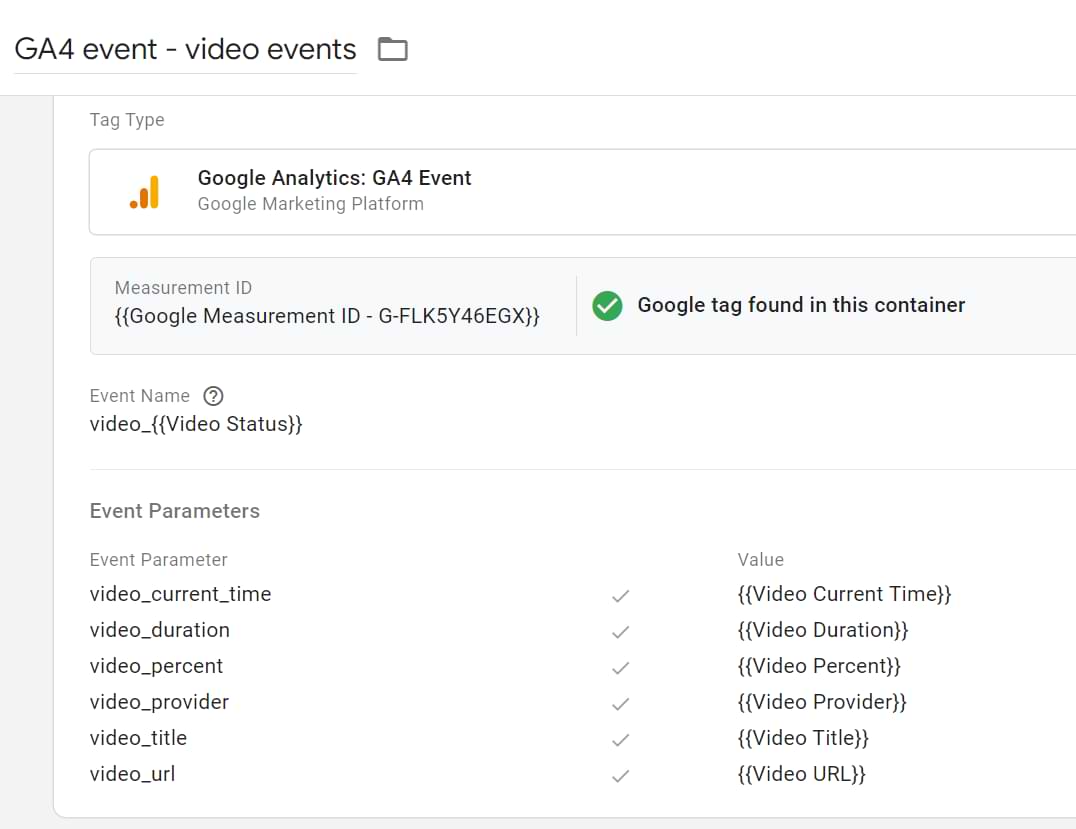

#2.6 Google Analytics Event

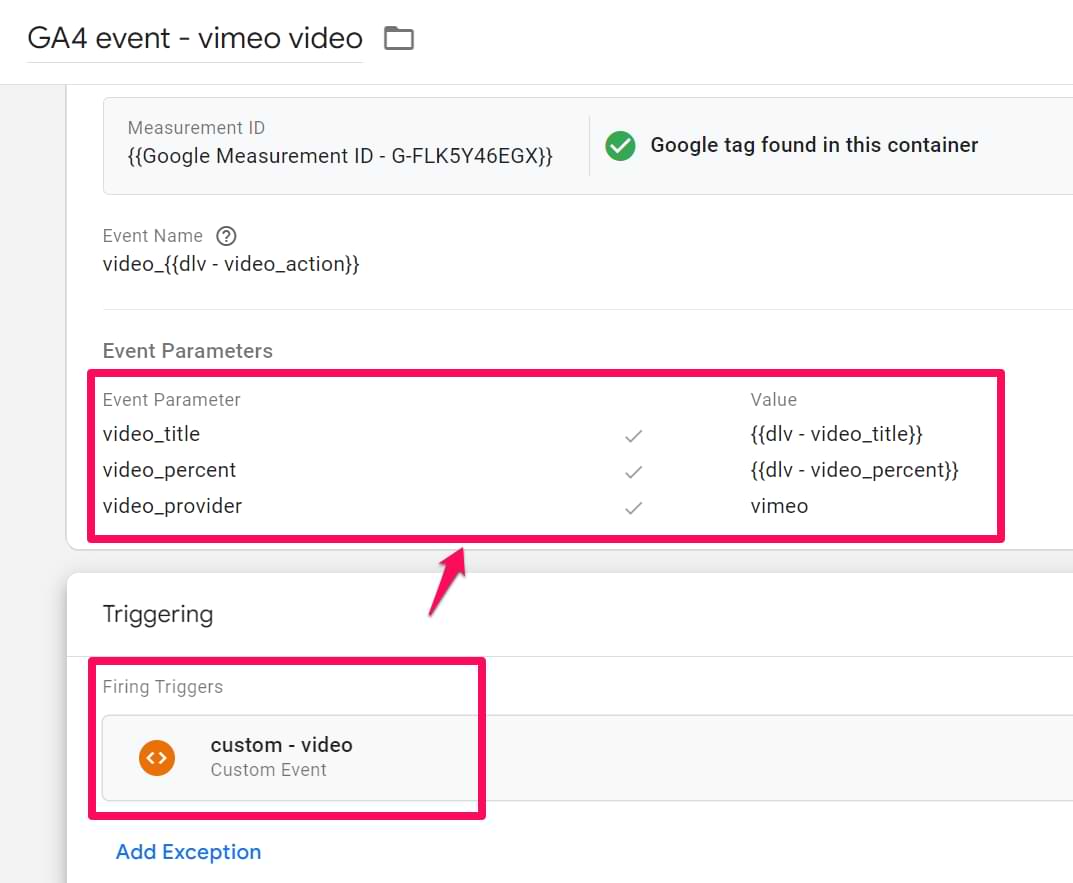

The last step is to create a Google Analytics event tag which is triggered by the Custom Event called video. With that event tag, you’ll also need to transfer some additional data to Google Analytics.

#2.7 Confusing?

If you feel confused at this moment, that’s perfectly fine. I have explained Google Tag Manager video tracking concept multiple times and quite often, I get this response:

If you’re like me, you probably prefer flow-charts or some other visual content that explains a certain topic in a more easy-to-digest manner. Well, this time is no exclusion. I hope you find the flowchart (below) useful.

In addition, here is a quick explanation/summary:

A pageview trigger’s rule is based on a Custom JavaScript variable. If a variable’s value equals to true (meaning that a video player exists on a page), a Video Auto-Event Listener is fired (Custom HTML Tag)
That listener is waiting for any video player interaction to occur. When it spots one, a dataLayer.push event is dispatched with the following data: event name, eventCategory, eventAction, eventLabel. All these data points are stored in the Data Layer. Note: the parameters pushed to the Data Layer might be different depending on the video player/listener.
By default, GTM does not recognize data in the Data Layer, unless you “teach” it. You can do that by creating Data Layer variables and Custom Event triggers.
The last step is to create a Universal Analytics Event tag that fires upon the Custom Event Trigger “video” and transfers values of 3 Data Layer variables to Google Analytics.

So that’s how Google Tag Manager Video Tracking works in theory. Let’s proceed to the fun stuff, practice, shall we?

#3 Practical example: Vimeo video player

As promised, let’s see how Google Tag Manager Video Tracking works in practice. We’ll use Vimeo as an example.

#3.1 Is the Vimeo player present on the page?

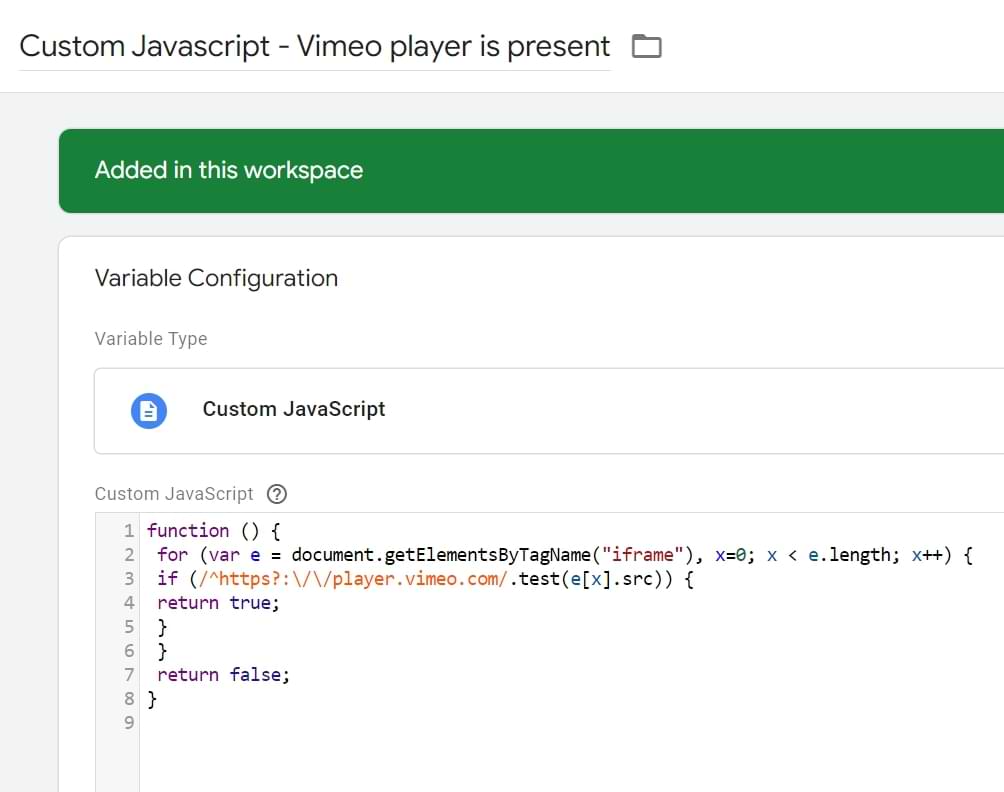

First, create a Custom JavaScript variable and paste the following code:

function () {
 for (var e = document.getElementsByTagName("iframe"), x=0; x < e.length; x++) {
 if (/^https?:\/\/player.vimeo.com/.test(e[x].src)) {
 return true;
 }
 }
 return false;
}

function () {

for (var e = document.getElementsByTagName("iframe"), x=0; x < e.length; x++) {

if (/^https?:\/\/player.vimeo.com/.test(e[x].src)) {

return true;

}

return false;

}

If the Vimeo player is embedded in the page, this variable will return true. This is a good indicator that should be used in a Pageview Trigger. If Vimeo player is present, it’ll fire a Vimeo Auto-Event Listener.

#3.2 Vimeo Auto-Event Listener

Now, it’s Vimeo Listener’s turn. Create a Custom HTML tag and paste the following code (the original authors of this code are Bill Tripple and Bogdan Bistriceanu from Cardinal Path). This listener was recently slightly updated to support thresholds of the watched video (there was some change on Vimeo’s end that temporarily broke the listener’s functionality).

<!--
Google Analytics Tag Manager (V2) custom HTML tag for Vimeo video tracking

Copyright 2016, Cardinal Path, Inc.

Original author: Bill Tripple <btripple@cardinalpath.com>
Revised by: Bogdan Bistriceanu <bbistriceanu@cardinalpath.com>
Updated by: Julius Fedorovicius <julius@analyticsmania.com> and Richard Outram <Richard.Outram@simmbiotic.com>

Version 2.1
-->

<script>
var dataLayer = (typeof(dataLayer) !== "undefined" && dataLayer instanceof Array) ? dataLayer : [];
var videoLabels=[];
var lastP=[];

//we declare variables that will hold information about the video being played
var _playerTitle = {}, _playerAuthor = {}, _playerAuthorURL = {}, _playerUploadDate = {};

try{
 init();
}
catch(err){
 dataLayer.push({
 'event': 'gtm.error',
 'errorMessage': e.message,
 'tag': 'CP - UA - Vimeo Video Listener'
 })
}
function init(){
 try{
 var player=document.getElementsByTagName("iframe");
 for (i = 0; i < player.length; ++i) {
 var url=player[i].getAttribute("src");

 if(/player\.vimeo\.com\/video/.test(url)){ // vimeo iframe found
 if(!player[i].hasAttribute("id")){ // id attribute missing
 player[i].setAttribute("id","vimeo_id_"+i); // add id attribute
 }
 var urlUpdated=false;
 if(!/api=/.test(url)){ // check to see if api parameter is in src attribute
 url=updateUrl(url,"api",1);
 urlUpdated=true;
 }

 if(!/player_id=/.test(url)){ // check if player_id is in src attribute
 url=updateUrl(url,"player_id",player[i].getAttribute("id"));
 urlUpdated=true;
 }
 if(urlUpdated){ // repopulate src attribute with added parameters
 player[i].setAttribute("src",url)
 }
 videoLabels[player[i].getAttribute("id")]=player[i].getAttribute("src"); // id to label dictionary
 }
 }

 // Listen for messages from the player
 if (window.addEventListener){
 window.addEventListener('message', onMessageReceived, false);
 }
 else {
 window.attachEvent('onmessage', onMessageReceived, false);
 }
 }
 catch(err){
 }
}

function updateUrl(url,param,value){
 try{
 return url+((/\?/.test(url)) ? "&" : "?")+param+"="+value;
 }
 catch(err){
 }
}

// Handle messages received from the player
function onMessageReceived(e) {
 try{
 var data = e.data;

 if(typeof data === "string"){
 data = JSON.parse(data);
 }

 switch (data.event) {
 case 'ready':
 onReady(data);
 break;
 case 'play':
 onPlay(data);
 break;
 case 'pause':
 onPause(data);
 break;
 case 'timeupdate':
 onPlayProgress(data);
 break;
 }
 }
 catch(err){
 }
}

// Helper function for sending a message to the player
function post(action, value) {
 try{
 var data = {
 method: action
 };

 if (value) {
 data.value = value;
 }

 var message = JSON.stringify(data);
 var player = document.getElementsByTagName("iframe");
 var url;
 var prot;


 for (i = 0; i < player.length; ++i) {
 url=player[i].getAttribute("src");

 if(/player\.vimeo\.com\/video/.test(url)){
 // Check if protocol exists
 prot = player[i].getAttribute('src').split('?')[0].split('//')[0];

 // If protocol doesn't exist, then need to append to "url"
 if (!prot){
 url="https:" + player[i].getAttribute("src").split('?')[0];
 }
 player[i].contentWindow.postMessage(data, url);
 }
 }
 }
 catch(err){
 }
}

function getLabel(id){
 try{
 return videoLabels[id].split('?')[0].split('/').pop();
 }
 catch(err){
 }
}

//our function that will use the Vimeo oEmbed API to retrieve additional information about the video
function getVimeoInfo(url, callback) {

 var script = document.createElement('script');
 script.type = 'text/javascript';
 script.src = url;

 document.getElementsByTagName('body')[0].appendChild(script);
}

//the callback function which takes the data received from the Vimeo oEmbed API and places it into the corresponding objectes
function vimeoCallback(e){
 //console.log(e);
 _playerTitle[e['video_id']] = e['title'];
 _playerAuthor[e['video_id']] = e['author_name']
 _playerAuthorURL[e['video_id']] = e['author_url']
 _playerUploadDate[e['video_id']] = e['upload_date']
}

function onReady(data) {
 try{
 //execute our function which queries the Vimeo oEmbed API once the embedded videos are "ready"
 getVimeoInfo("https://www.vimeo.com/api/oembed.json?url=https://vimeo.com/"+getLabel(data.player_id)+"&callback=vimeoCallback", vimeoCallback);

 post('addEventListener', 'play');
 post('addEventListener', 'pause');
 post('addEventListener', 'finish');
 post('addEventListener', 'playProgress');
 }
 catch(err){
 }
}

function onPlay(data){
 try{
 dataLayer.push({
 event: "video",
 eventCategory: "vimeo",
 eventAction: "vimeo play",
 eventLabel: _playerTitle[getLabel(data.player_id)].toLowerCase() + " - " + getLabel(data.player_id),
 vimeo_playerID: getLabel(data.player_id),
 vimeo_playerTitle: _playerTitle[getLabel(data.player_id)].toLowerCase(),
 vimeo_playerAuthor: _playerAuthor[getLabel(data.player_id)].toLowerCase(),
 vimeo_playerAuthorURL: _playerAuthorURL[getLabel(data.player_id)].toLowerCase(),
 vimeo_playerUploadDate: _playerUploadDate[getLabel(data.player_id)],
 nonInteractive: true
 });
 }
 catch(err){
 }
}

function onPause(data){
 try{
 dataLayer.push({
 event: "video",
 eventCategory: "vimeo",
 eventAction: "vimeo video pause",
 eventLabel: _playerTitle[getLabel(data.player_id)].toLowerCase() + " - " + getLabel(data.player_id),
 vimeo_playerID: getLabel(data.player_id),
 vimeo_playerTitle: _playerTitle[getLabel(data.player_id)].toLowerCase(),
 vimeo_playerAuthor: _playerAuthor[getLabel(data.player_id)].toLowerCase(),
 vimeo_playerAuthorURL: _playerAuthorURL[getLabel(data.player_id)].toLowerCase(),
 vimeo_playerUploadDate: _playerUploadDate[getLabel(data.player_id)],
 nonInteractive: true
 });
 }
 catch(err){
 }
}

// Track progress: 25%, 50%, 75%, 100%
function onPlayProgress(data) {
 try{
 var t = data.data.duration - data.data.seconds <= 1.5 ? 1 : (Math.floor(data.data.seconds / data.data.duration * 4) / 4).toFixed(2); if (!lastP[data.player_id] || t > lastP[data.player_id]) {
 lastP[data.player_id]=t;
 if (parseFloat(t) != 0){
 dataLayer.push({
 event: "video",
 eventCategory: "vimeo",
 eventAction: "vimeo video " +t*100+ "% Complete",
 eventLabel: _playerTitle[getLabel(data.player_id)].toLowerCase() + " - " + getLabel(data.player_id),
 vimeo_playerID: getLabel(data.player_id),
 vimeo_playerTitle: _playerTitle[getLabel(data.player_id)].toLowerCase(),
 vimeo_playerAuthor: _playerAuthor[getLabel(data.player_id)].toLowerCase(),
 vimeo_playerAuthorURL: _playerAuthorURL[getLabel(data.player_id)].toLowerCase(),
 vimeo_playerUploadDate: _playerUploadDate[getLabel(data.player_id)],
 nonInteractive: true
 })
 }
 }
 }
 catch(err){
 }
}
</script>
