November 15, 2019

How to Track HTML5 Audio Player with Google Tag Manager and GA

Updated: November 15th. I guess that the majority of the GTM community is familiar with a custom event listener that probably already has the status of legendary. Even this Twitter (that I saw today in my feed) confirmed this:

Yes, I’m talking about David Vallejo’s HTML5 video listener that is used to track almost any other video player that is not Youtube or Vimeo (or anything else in the iFrame). You can also find a GTM recipe here.

But today’s blog post is not about the video.

Media events
HTML5 audio listener for GTM (a.k.a. one word can make a difference)
Requirements for this solution to work
So how do we actually track HTML5 audio player with GTM?
Google Tag Manager Recipe
How to track HTML5 audio player with Google Tag Manager: Final words

Media events

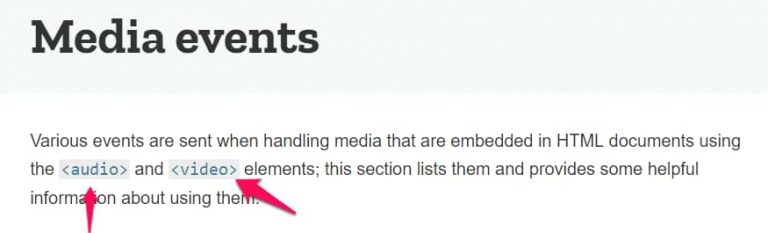

Some time ago, I discovered a thing called Media events (I’m still in the very beginning of my JavaScript journey, so pardon my ignorance). It turned out that there is a bunch of interactions that can be tracked (e.g. play, pause, etc.) on video players (and audios as well). David’s listener catches those very exact events and pushes them to the Data Layer.

But his listener does that only for HTML5 video players. Audio is not supported.

Unless… you change one word in his code. Literally, one word.

P.S. In the final result, there will be more words changed (but it was done just to match the proper naming convention). But in order to just start listening to audio events, it’s enough to change one word in David’s code.

HTML5 audio listener for GTM (a.k.a. one word can make a difference)

Let’s take a quick look at David’s listener code. Since there are no numbers of code lines, you should be looking somewhere at 60% mark of his code.

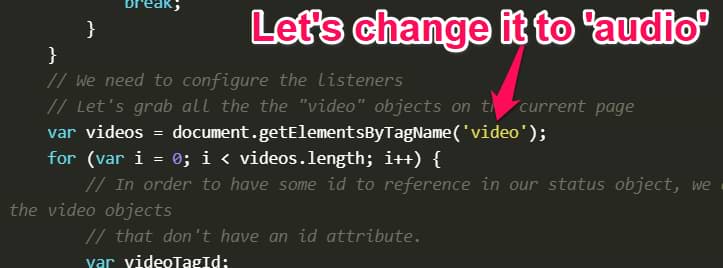

Spot this line:

var videos = document.getElementsByTagName('video');

1	var videos = document.getElementsByTagName('video');

It means that the code is looking for elements that are using the HTML tag <video> and will start listening to their events. If we go back to the MDN’s documentation about media events, you’ll see that those interactions are supported by <video> and <audio> elements.

So that one word that we need to change is video.

That is the minimum you need to do in order to adapt the listener to HTML5 audio. But to keep things tidy and to have the proper naming convention, I changed more words (for example, I’ve replaced all other “video” words in the code and changed it to “audio”).

So, the final result of the HTML5 audio listener for Google Tag Manager is this:

<script>
// This listener is based on David Vallejo's HTML5 video listener, thyngster.com/tracking-html5-videos-gtm/
// Edited by Julius Fedorovicius, analyticsmania.com

  // Let's wrap everything inside a function so variables are not defined as globals
(function() {
    // This is gonna our percent buckets ( 10%-90% )
    var divisor = 10;
    // We're going to save our players status on this object.
    var audios_status = {};
    // This is the funcion that is gonna handle the event sent by the player listeners
    function eventHandler(e) {
        switch (e.type) {
            // This event type is sent everytime the player updated it's current time,
            // We're using for the % of the audio played.
        case 'timeupdate':
            // Let's set the save the current player's audio time in our status object
            audios_status[e.target.id].current = Math.round(e.target.currentTime);
            // We just want to send the percent events once
            var pct = Math.floor(100 * audios_status[e.target.id].current / e.target.duration);
            for (var j in audios_status[e.target.id]._progress_markers) {
                if (pct >= j && j > audios_status[e.target.id].greatest_marker) {
                    audios_status[e.target.id].greatest_marker = j;
                }
            }
            // current bucket hasn't been already sent to GA?, let's push it to GTM
            if (audios_status[e.target.id].greatest_marker && !audios_status[e.target.id]._progress_markers[audios_status[e.target.id].greatest_marker]) {
                audios_status[e.target.id]._progress_markers[audios_status[e.target.id].greatest_marker] = true;
                dataLayer.push({
                    'event': 'audio',
                    'audioPlayerAction': 'Progress %' + audios_status[e.target.id].greatest_marker,
                    // We are using sanitizing the current audio src string, and getting just the audio name part
                    'audioTitle': decodeURIComponent(e.target.currentSrc.split('/')[e.target.currentSrc.split('/').length - 1])
                });
            }
            break;
            // This event is fired when user's click on the play button
        case 'play':
            dataLayer.push({
                'event': 'audio',
                'audioPlayerAction': 'play',
                'audioTitle': decodeURIComponent(e.target.currentSrc.split('/')[e.target.currentSrc.split('/').length - 1])
            });
            break;
            // This event is fied when user's click on the pause button
        case 'pause':
            dataLayer.push({
                'event': 'audio',
                'audioPlayerAction': 'pause',
                'audioTitle': decodeURIComponent(e.target.currentSrc.split('/')[e.target.currentSrc.split('/').length - 1]),
                'audioValue': audios_status[e.target.id].current
            });
            break;
            // If the user ends playing the audio, an Finish audio will be pushed ( This equals to % played = 100 )
        case 'ended':
            dataLayer.push({
                'event': 'audio',
                'audioPlayerAction': 'finished',
                'audioTitle': decodeURIComponent(e.target.currentSrc.split('/')[e.target.currentSrc.split('/').length - 1])
            });
            break;
        default:
            break;
        }
    }
    // We need to configure the listeners
    // Let's grab all the the "audio" objects on the current page
    var audios = document.getElementsByTagName('audio');
    for (var i = 0; i < audios.length; i++) {
        // In order to have some id to reference in our status object, we are adding an id to the audio objects
        // that don't have an id attribute.
        var audioTagId;
        if (!audios[i].getAttribute('id')) {
            // Generate a random alphanumeric string to use is as the id
            audioTagId = 'html5_audio_' + Math.random().toString(36).slice(2);
            audios[i].setAttribute('id', audioTagId);
        }// Current audio has alredy a id attribute, then let's use it <img class="emoji" draggable="false" src="https://s.w.org/images/core/emoji/2/svg/1f642.svg" alt="?" />
        else {
            audioTagId = audios[i].getAttribute('id');
        }
        // audio Status Object declaration
        audios_status[audioTagId] = {};
        // We'll save the highest percent mark played by the user in the current audio.
        audios_status[audioTagId].greatest_marker = 0;
        // Let's set the progress markers, so we can know afterwards which ones have been already sent.
        audios_status[audioTagId]._progress_markers = {};
        for (j = 0; j < 100; j++) {
            audios_status[audioTagId].progress_point = divisor * Math.floor(j / divisor);
            audios_status[audioTagId]._progress_markers[audios_status[audioTagId].progress_point] = false;
        }
        // On page DOM, all players currentTime is 0
        audios_status[audioTagId].current = 0;
        // Now we're setting the event listeners.
        audios[i].addEventListener("play", eventHandler, false);
        audios[i].addEventListener("pause", eventHandler, false);
        audios[i].addEventListener("ended", eventHandler, false);
        audios[i].addEventListener("timeupdate", eventHandler, false);
    }
})();
</script>

100

// This listener is based on David Vallejo's HTML5 video listener, thyngster.com/tracking-html5-videos-gtm/

// Edited by Julius Fedorovicius, analyticsmania.com

// Let's wrap everything inside a function so variables are not defined as globals

(function() {

// This is gonna our percent buckets ( 10%-90% )

var divisor = 10;

// We're going to save our players status on this object.

var audios_status = {};

// This is the funcion that is gonna handle the event sent by the player listeners

function eventHandler(e) {

switch (e.type) {

// This event type is sent everytime the player updated it's current time,

// We're using for the % of the audio played.

case 'timeupdate':

// Let's set the save the current player's audio time in our status object

audios_status[e.target.id].current = Math.round(e.target.currentTime);

// We just want to send the percent events once

var pct = Math.floor(100 * audios_status[e.target.id].current / e.target.duration);

for (var j in audios_status[e.target.id]._progress_markers) {

if (pct >= j && j > audios_status[e.target.id].greatest_marker) {

audios_status[e.target.id].greatest_marker = j;

}

// current bucket hasn't been already sent to GA?, let's push it to GTM

if (audios_status[e.target.id].greatest_marker && !audios_status[e.target.id]._progress_markers[audios_status[e.target.id].greatest_marker]) {

audios_status[e.target.id]._progress_markers[audios_status[e.target.id].greatest_marker] = true;

dataLayer.push({

'event': 'audio',

'audioPlayerAction': 'Progress %' + audios_status[e.target.id].greatest_marker,

// We are using sanitizing the current audio src string, and getting just the audio name part

'audioTitle': decodeURIComponent(e.target.currentSrc.split('/')[e.target.currentSrc.split('/').length - 1])

});

}

break;

// This event is fired when user's click on the play button

case 'play':

dataLayer.push({

'event': 'audio',

'audioPlayerAction': 'play',

'audioTitle': decodeURIComponent(e.target.currentSrc.split('/')[e.target.currentSrc.split('/').length - 1])

});

break;

// This event is fied when user's click on the pause button

case 'pause':

dataLayer.push({

'event': 'audio',

'audioPlayerAction': 'pause',

'audioTitle': decodeURIComponent(e.target.currentSrc.split('/')[e.target.currentSrc.split('/').length - 1]),

'audioValue': audios_status[e.target.id].current

});

break;

// If the user ends playing the audio, an Finish audio will be pushed ( This equals to % played = 100 )

case 'ended':

dataLayer.push({

'event': 'audio',

'audioPlayerAction': 'finished',

'audioTitle': decodeURIComponent(e.target.currentSrc.split('/')[e.target.currentSrc.split('/').length - 1])

});

break;

default:

break;

}

// We need to configure the listeners

// Let's grab all the the "audio" objects on the current page

var audios = document.getElementsByTagName('audio');

for (var i = 0; i < audios.length; i++) {

// In order to have some id to reference in our status object, we are adding an id to the audio objects

// that don't have an id attribute.

var audioTagId;

if (!audios[i].getAttribute('id')) {

// Generate a random alphanumeric string to use is as the id

audioTagId = 'html5_audio_' + Math.random().toString(36).slice(2);

audios[i].setAttribute('id', audioTagId);

}// Current audio has alredy a id attribute, then let's use it <img class="emoji" draggable="false" src="https://s.w.org/images/core/emoji/2/svg/1f642.svg" alt="?" />

else {

audioTagId = audios[i].getAttribute('id');

}

// audio Status Object declaration

audios_status[audioTagId] = {};

// We'll save the highest percent mark played by the user in the current audio.

audios_status[audioTagId].greatest_marker = 0;

// Let's set the progress markers, so we can know afterwards which ones have been already sent.

audios_status[audioTagId]._progress_markers = {};

for (j = 0; j < 100; j++) {

audios_status[audioTagId].progress_point = divisor * Math.floor(j / divisor);

audios_status[audioTagId]._progress_markers[audios_status[audioTagId].progress_point] = false;

}

// On page DOM, all players currentTime is 0

audios_status[audioTagId].current = 0;

// Now we're setting the event listeners.

audios[i].addEventListener("play", eventHandler, false);

audios[i].addEventListener("pause", eventHandler, false);

audios[i].addEventListener("ended", eventHandler, false);

audios[i].addEventListener("timeupdate", eventHandler, false);

}

})();

</script>

Requirements for this solution to work

This listener supports only those audio players embedded on a page that:

Are not in the iFrame
Use the <audio> HTML tag

Both of these conditions must be met. If the listener is indeed not working (and you don’t see the audio events in GTM’s preview and debug mode, inspect the player and most likely you will see that there is no <audio> tag on a page or that you’re dealing with an iframe.

As for the audio player, just open your browser’s developer tools, go to the “Elements” tab (a.k.a. “DOM Inspector”) and do a quick search (e.g. CTRL + F). In the search field, enter “<audio” (without quotation marks, and I intentionally skipped the > sign). If it returns 0 results, you’re out of luck.

In fact, for some reason, it is quite common for audio players to be built by not using the <audio> tag. At least, that’s what I’ve noticed. So if your website utilizes some way-too-fancy audio player, well, this guide is not for you, sorry.

As for the iFrame, you should inspect the audio player, climb the element tree (DOM tree) and see if there isn’t an <iframe> somewhere along the way.

So how do we actually track HTML5 audio player with GTM?

Compared to HTML5 video tracking, the process of tracking the audio player is quite the same:

Implement the HTML5 audio player listener (with a Custom HTML tag)
Create Custom Event Trigger and Data Layer Variables

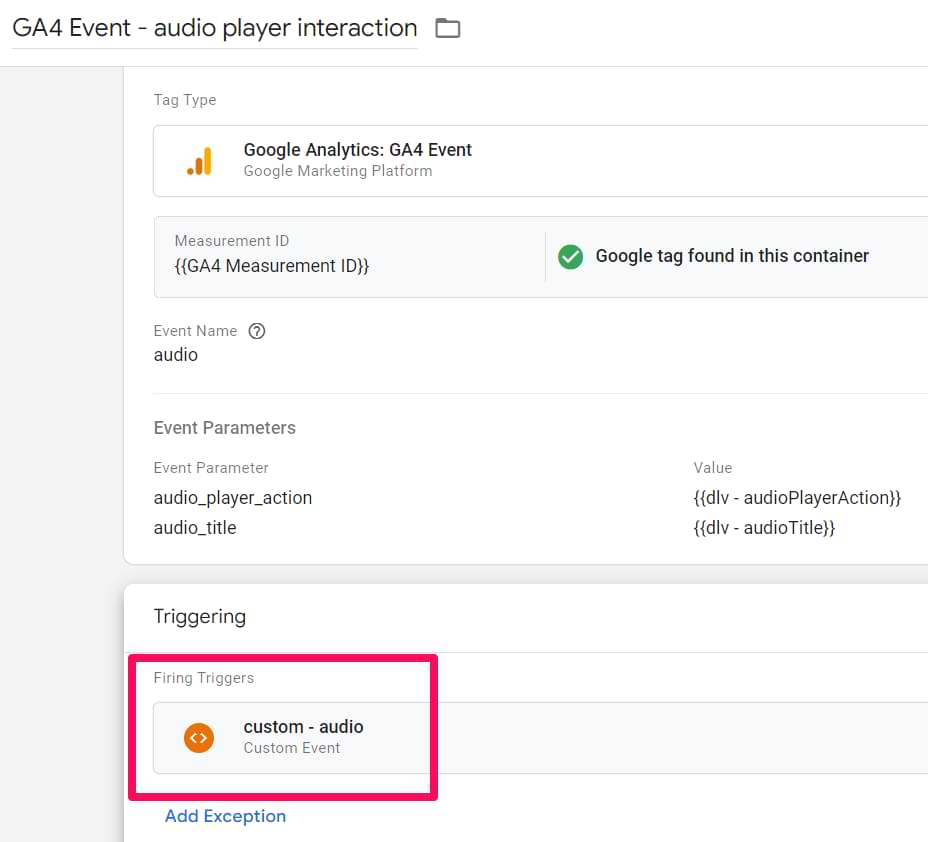

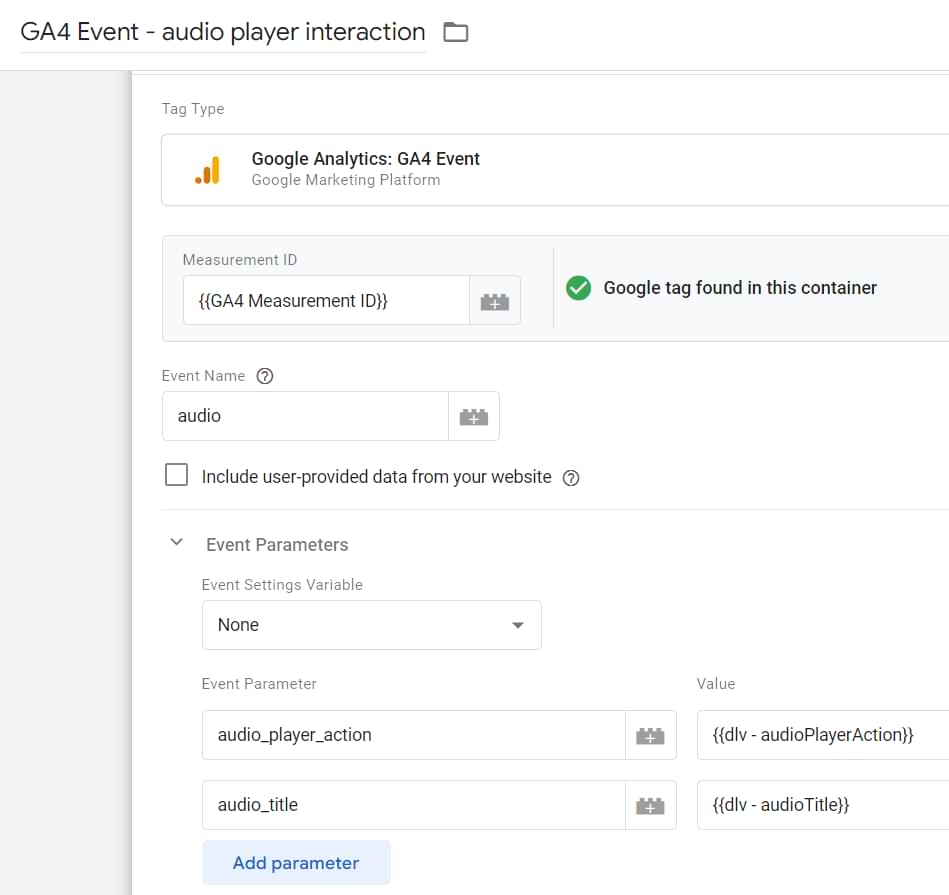

Create a Google Analytics tag that will send the audio player data to GA
Test

#1. Custom HTML tag

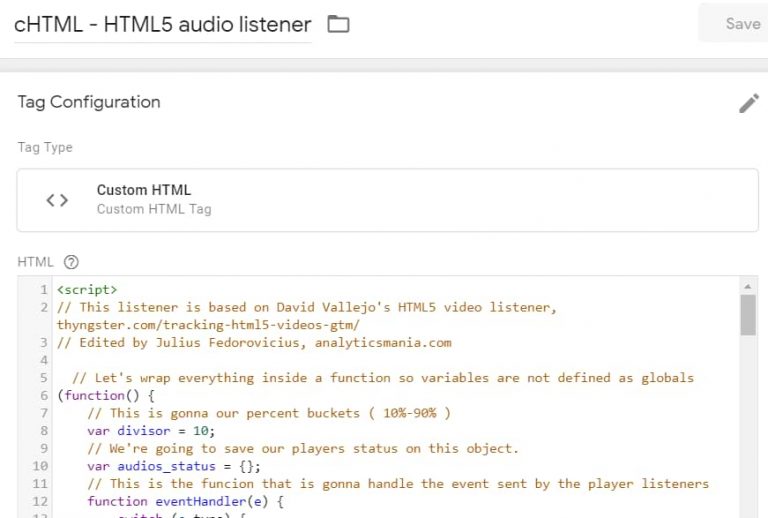

First, we need to activate the HTML5 audio player listener on a page. Since this is a custom solution, this must be done with a Custom HTML tag. So go to GTM > Tags > New > Custom HTML and paste the aforementioned code.

When should you activate this listener? There are two possible answers:

If you have A LOT of pages with audio players, you can set that Custom HTML tag to simply fire on DOM Ready trigger (you’ll need to create that by yourself).
If you have a listener just on certain pages, we can follow the usual practice, activate the Listener only on those pages where audio players actually exist (a.k.a. HTML element <audio> is present).

#1.1. Create a Custom JavaScript variable

It will return true if <audio> element is present on a page. If not, then you’ll get false. This variable will be used in a trigger that decides whether to activate the Custom HTML tag (listener) or not.

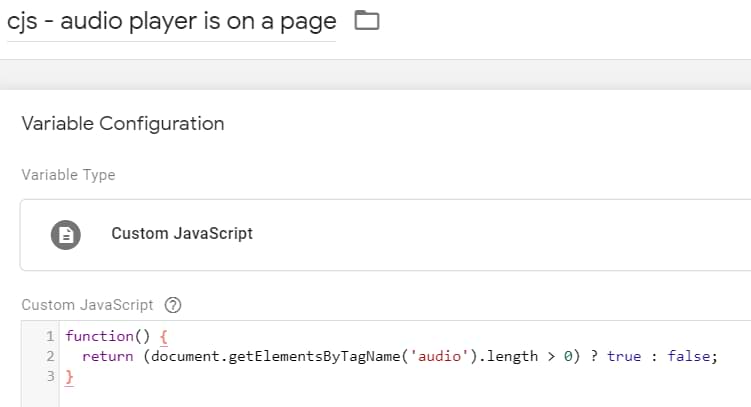

In GTM, go to Variables > Scroll down to User-defined Variables > Custom JavaScript and paste the following code:

function() {
  return (document.getElementsByTagName('audio').length > 0) ? true : false;
}

function() {

return (document.getElementsByTagName('audio').length > 0) ? true : false;

}

We can name the variable cjs – audio player is on a page

#1.2. Create a trigger that activates the listener only when the audio player is present

In Google Tag Manager, go to Triggers > New > DOM Ready. We want it to fire not on all DOM Ready events but just on those, when previously created cjs – audio player is on a page variable returns true.

In other words, if the HTML5 audio player is actually on a page, only then the Custom HTML tag will be activated.

Assign this trigger to the Custom HTML tag.

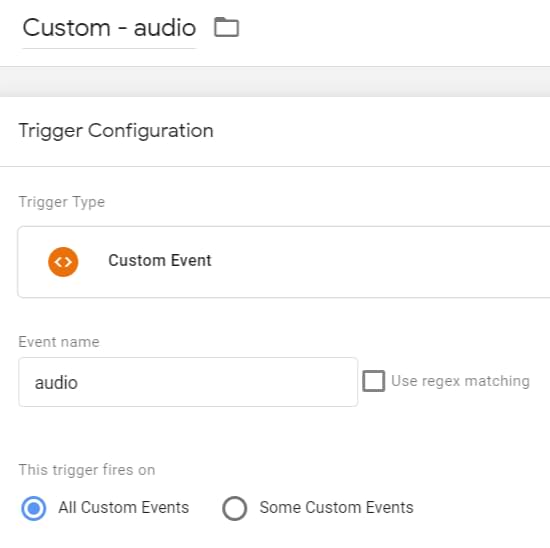

#2. Custom Event Trigger and Data Layer Variables

After you create the HTML tag (with the listener code) and add a trigger to it, save everything, enable the Preview and Debug mode and go to the website you’re working on (I mean where the audio player is present).

Refresh that page (the Preview and Debug mode should appear).

Click the DOM Ready event on the left side and check whether the Custom HTML tag has fired. If yes, that’s good. This is exactly what you should expect. If the Custom HTML tag has fired, this means that the audio player is present. Once you start interacting with the player, some new events will start appearing in the Preview and Debug panel.

Those events are possible because the listener is doing its job, it listens to player interactions and then sends them to the Data Layer so that GTM could be informed.

Anyway, once the Custom HTML tag has fired, click Play in the audio player, you should see a new audio event in the Preview and Debug mode, then click Pause.

If you let the player play and you’ll see even more events (e.g. every 10% of the audio length, a new event will be pushed. Also, pause, play, finished events are supported).

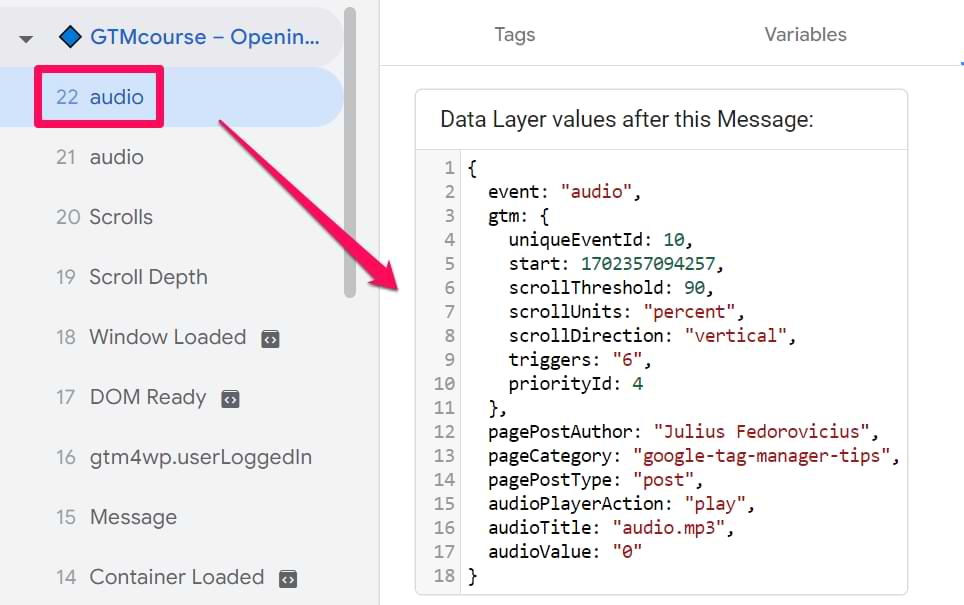

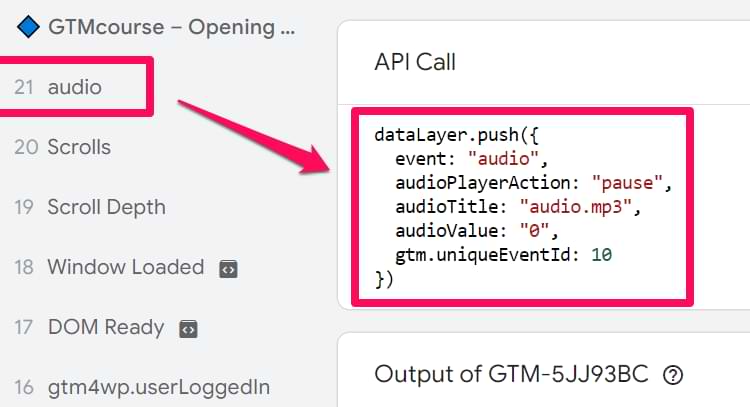

Click any of the audio events and go to the Data Layer tab. You’ll see some useful data related to that audio player, like audioPlayerAction and audioTitle.

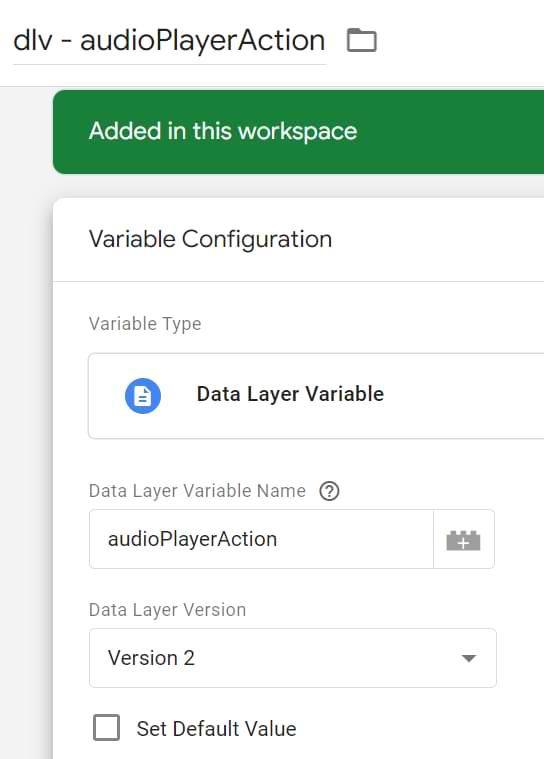

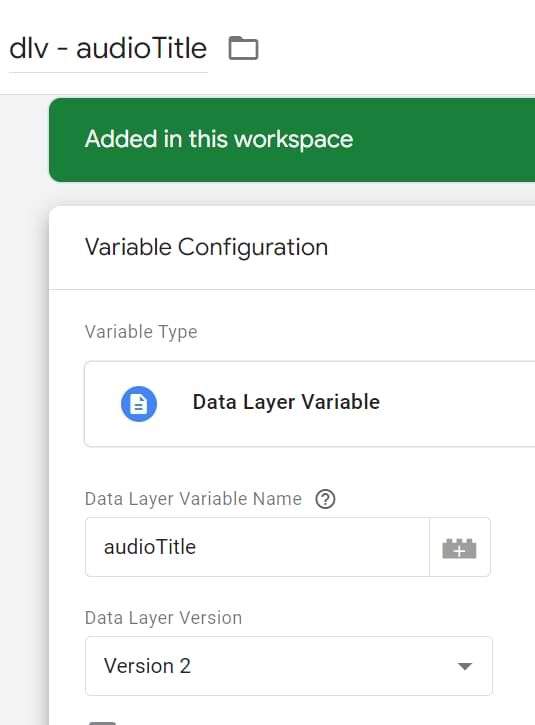

Even though this data is visible in the Preview mode, you cannot use them as triggers or variables, unless you specifically instruct GTM to do so. This can be done by creating the Custom Event trigger and several Data Layer Variables. So let’s do that.

Go to Triggers > New > Custom event and enter the following settings:

Then let’s create two Data Layer Variables. Remember, those settings are case-sensitive.

I didn’t create the audioValue variable because I don’t use it (but you can). It returns the threshold (in seconds) of where the video was paused (at least, I think so).

#3. Google Analytics event tag

Next step, let’s send the audio player event data to Google Analytics. In GTM, go to Tags > New > Universal Analytics and enter the following settings:

If you have given different names to Data Layer Variables, then enter those exact names in the GA event tag’s settings.

In triggering section of the tag, click anywhere and add the Custom Event trigger we’ve created in the previous chapter of this blog post.

#4. Let’s test

So here’s what was done so far:

A Custom HTML tag was created that contains the HTML5 audio player listener. I will fire either on all pages or only on those pages where the audio player is present (thanks for the Custom JS variable). It’s up to you which option to choose.
Custom Event Trigger and Data Layer Variables were created in order to catch everything that the audio player is listener is pushing to the Data Layer.
GA Event tag was created and it will be fired every time an event called audio is dispatched by the audio player listener. That event tag will transfer the values of audioPlayerAction and audioTitle.

Enable the GTM Preview and Debug mode, refresh the page with the audio player.

Start interacting with the player, e.g. click the Play button. The expected result:

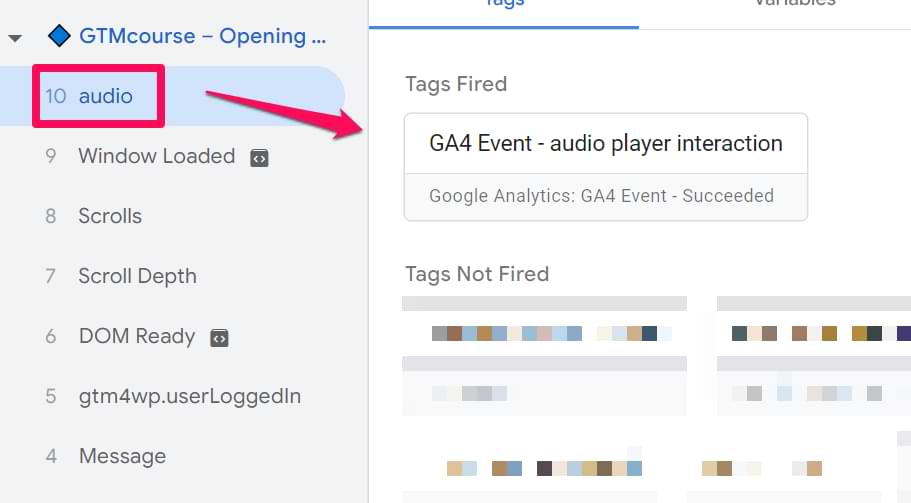

audio event will appear on the left side of the Preview and Debug mode
Click it and you should see the GA Event tag being fired

If everything is good, go to your GA Real-time reports > Events. Check whether those events are also visible there. If not, read this guide for some ideas on how to troubleshoot.

That’s it! You’re good to go with this solution. Just remember, if you don’t see audio events in the Preview and Debug mode, most likely, your player is not built with the <audio> HTML element or is in the iFrame. Then this guide will not help you.

However, if your player is not in the iFrame and uses the <audio> tag, then you could try changing the Listener’s trigger from DOM Ready to Window Loaded.

Google Tag Manager Recipe

To save you some time, here is a ready-made GTM recipe. Click this link, download the file, follow the instructions and start tracking.

How to track HTML5 audio player with Google Tag Manager: Final words

So there you have it. With a small tweak in the already existing solution, we managed to start tracking a different set of interactions on a page, HTML5 audio player. This wouldn’t have been possible without the brilliant David Vallejo’s HTML5 video listener code.

Here is the list of items that needed to be done in order to manually configure this:

HTML5 audio player listener is implemented via Custom HTML tag
Custom Event Trigger was created that catches the audio events
Data Layer Variables were created that fetch the audioPlayerAction and audioTitle values from the Data Layer. Those values appear there because the listener does so
Finally, Google Analytics tag was created that fires every time an audio event happens in the Data Layer. The tag also sends the values of audioPlayerAction and audioTitle.

Julius Fedorovicius

In Google Tag Manager Recipes Google Tag Manager Tips

7 COMMENTS

Ralph Keser

Oct 14 2019
Reply

Hi Julius,

thanks for the great article. I was looking for a solution to track play and download. And the play event is implemented. But who can I track downloads?

Thanks and Greetings
Ralph

Ralph Keser

Oct 14 2019
Reply

Hi Julius,

thanks for the great article. I was looking for a solution to track play and download. And the play event is implemented. But how can I track downloads in the controller?

Thanks and Greetings
Ralph

Julius Fedorovicius

Oct 14 2019
Reply

I would try using the click trigger.

Arunprabu Sivapprakasam

Dec 19 2019
Reply

Hi Julius
Is it possible to fire a trigger when the user clicks the Download button inside the Audio player?
If yes please tell me how.

Julius Fedorovicius

Dec 19 2019
Reply

Use regular all element clicks trigger. If that does not work, you're out of luck.

Arunprabu Sivapprakasam

Dec 19 2019
Reply

It seems I am out of Luck. :(
I have tried it already.

Maxim

Feb 11 2020
Reply

Thank you very much! It works )

How to Track HTML5 Audio Player with Google Tag Manager and GA

Table of Contents

Media events

HTML5 audio listener for GTM (a.k.a. one word can make a difference)

Requirements for this solution to work

So how do we actually track HTML5 audio player with GTM?

#1. Custom HTML tag

#1.1. Create a Custom JavaScript variable

#1.2. Create a trigger that activates the listener only when the audio player is present

#2. Custom Event Trigger and Data Layer Variables

#3. Google Analytics event tag

#4. Let’s test

Google Tag Manager Recipe

How to track HTML5 audio player with Google Tag Manager: Final words

7 COMMENTS

Leave a comment Cancel reply
